W83627HG-AW

W83627HG-AW资料
	W83627HG-AW PDF Download

File Size : 116 KB Manufacturer:WINBOND Description:Circuit Description This integrated circuit permits the design of TV-tuners covering the entire frequency range from 48 900 MHz split into 3 frequency bands. The application is suitable for all tuners in TV- and VCR-sets. The integrated circuit includes 3 balanced mixers (double balanced mixer/ring mixer), one unbalanced oscillator for VHF I and two balanced oscillators for VHF II and UHF, a SAW-filter driver amplifier as well as a reference voltage source and a band switch. Filters between tuner input and IC separate the TV-frequency signal into three bands. The band switch ensures that only one band at a time is activated. In the activated band the signal passes a frontend stage with MOSFET-amplifier, a double-tuned bandpass filter and is then fed to the balanced mixer input of the IC which is a high-impedance stage for the VHF I-range and a low-impedance stage for the VHF II- and UHF-range, respectively. The input signal is mixed there with the oscillator signal from the activated oscillator section and fed into common IF-stage for all bands. The IF-signal is further amplified in a SAW-filter driver section in order to drive the SAW-filter with a low impedance.

	1PCS	100PCS	1K	10K
价格

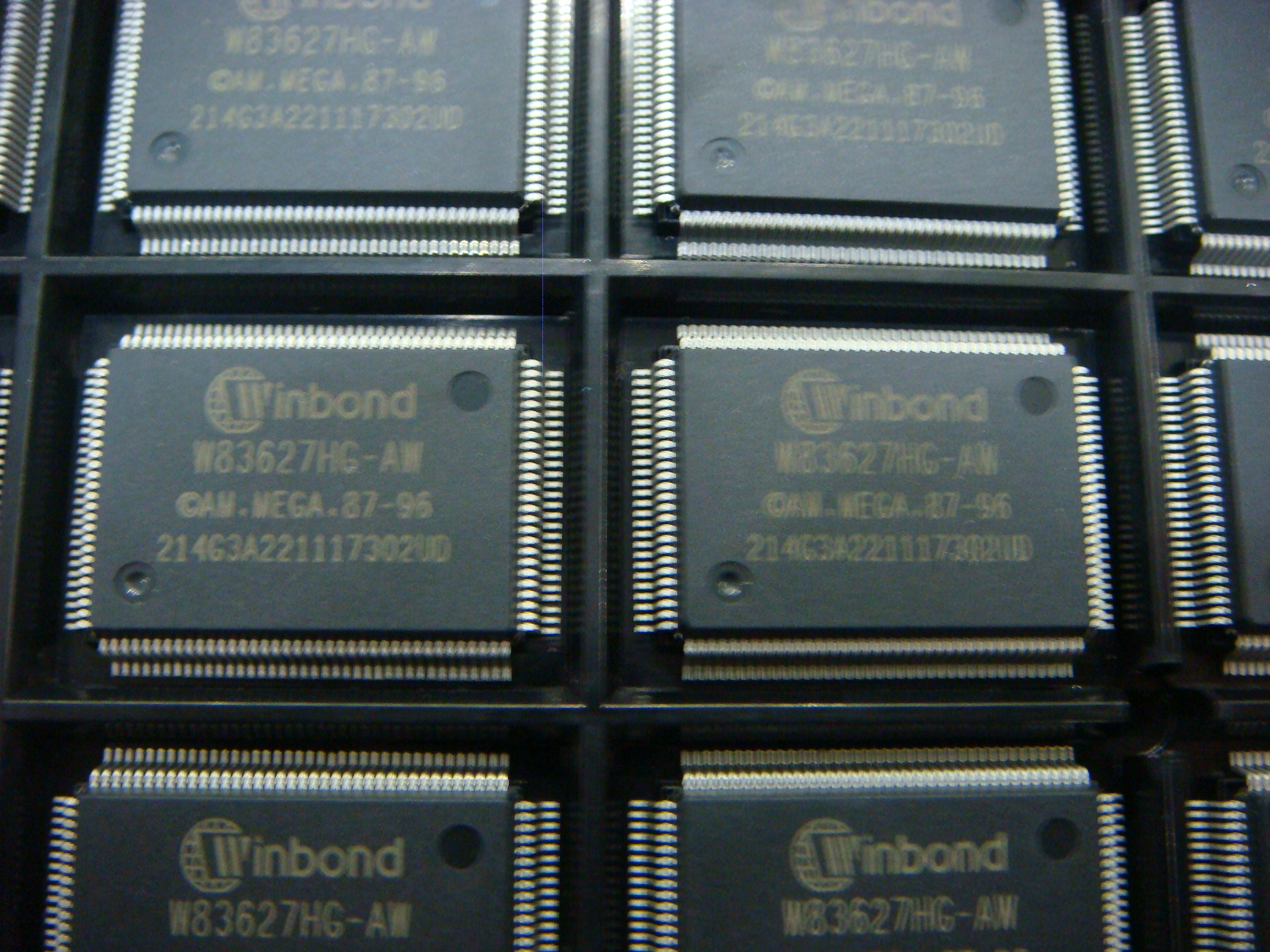

型号：W83627HG-AW 厂家：WINBOND 封装：QFP128 批号：12+ 数量：342 说明：全新原装正品


运费：运费到付10.00元（快递）20.00元（顺风）所在地：深圳新旧程度：新
